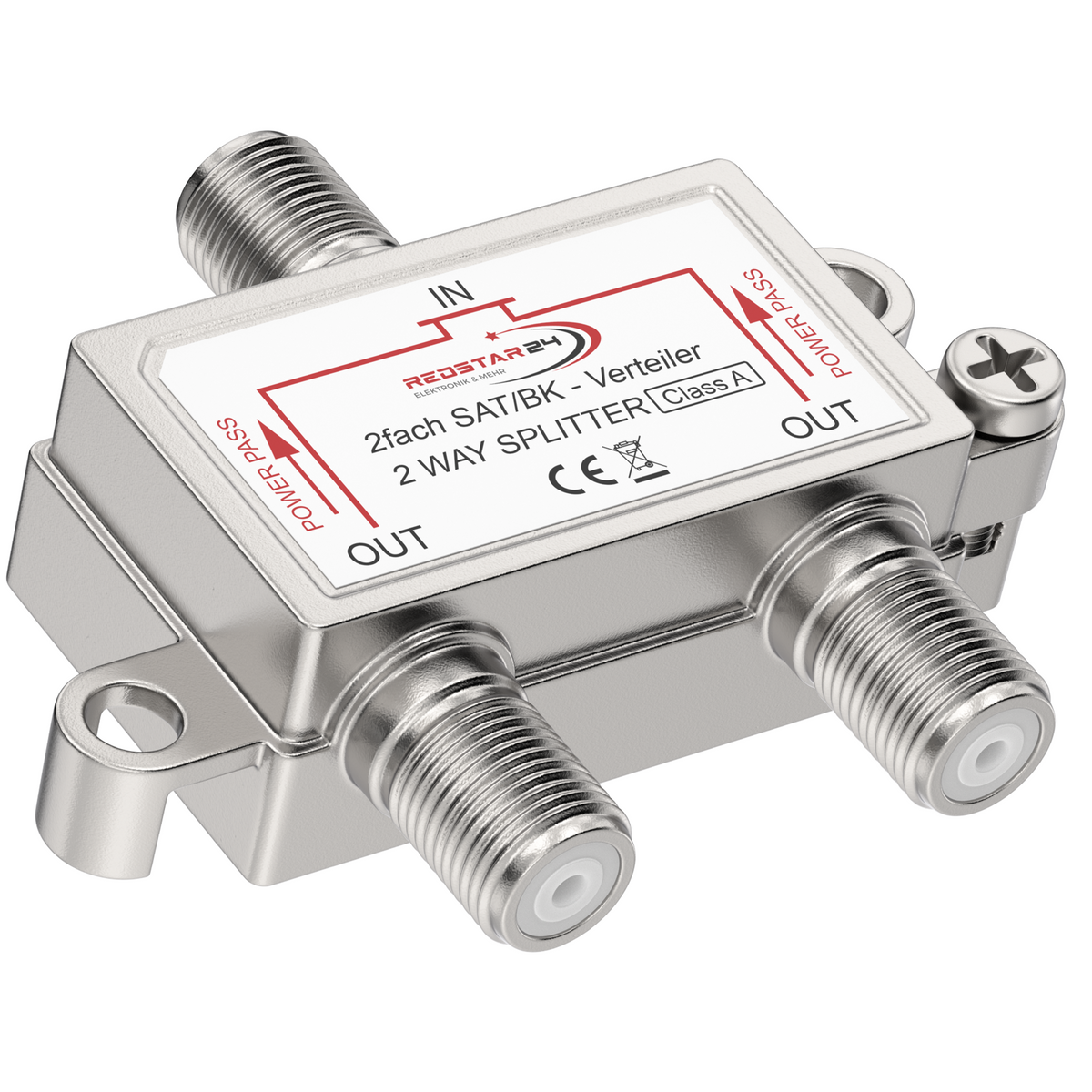

RedStar24 2-way satellite distributor – F-coupling splitter 120 dB – Digital TV, UHD 4K, DVB-S/S2, DVB-T2, DVB-C – Fully shielded metal housing

RedStar24 2-way satellite splitter – High-quality signal distribution for satellite and cable TV

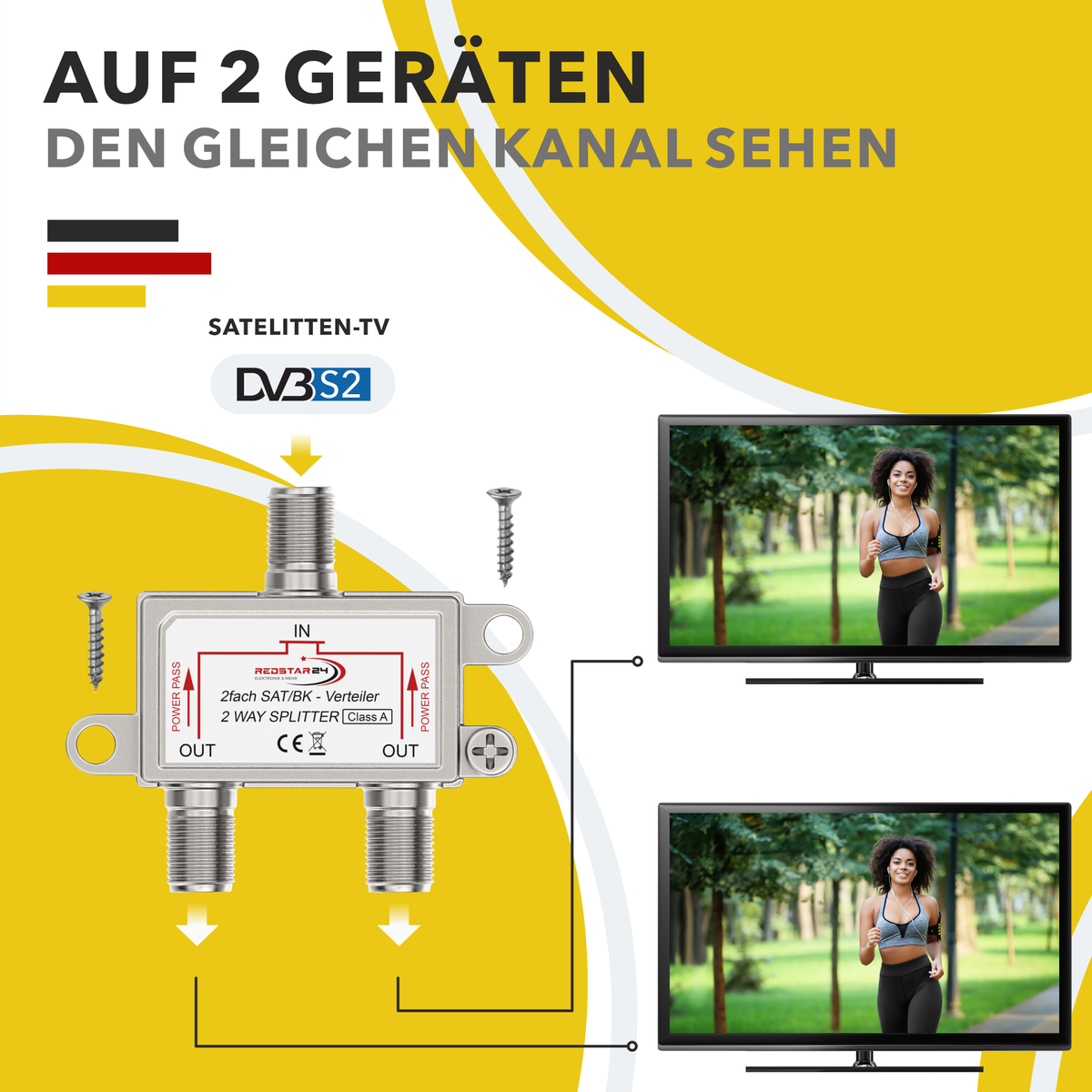

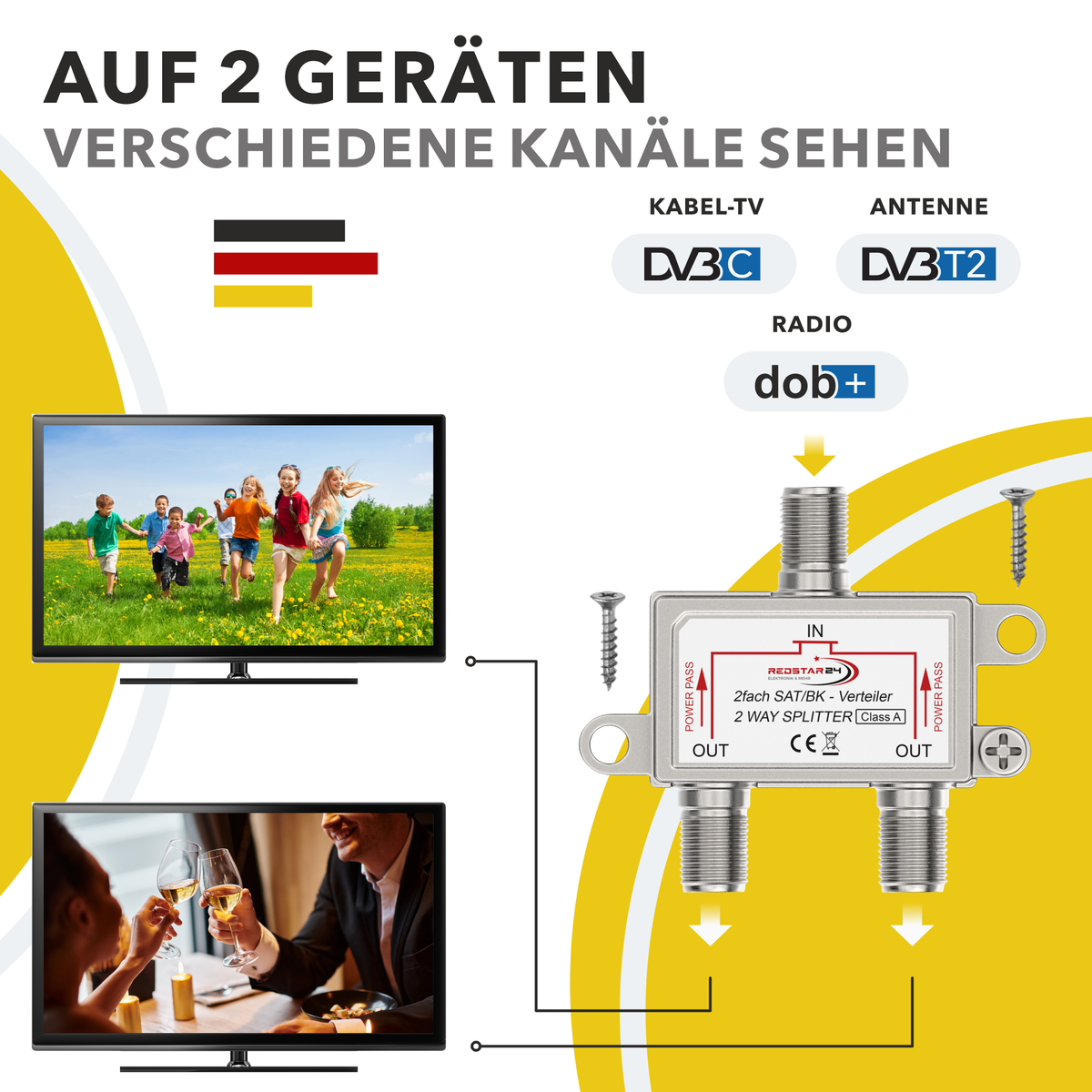

With the RedStar24 2-way satellite splitter, you can distribute satellite and cable TV signals evenly to two devices—ideal for TVs, receivers, or cable modems. Thanks to a shielding factor of up to 120 dB and support for UHD 4K, you can enjoy razor-sharp images and clear sound—completely interference-free.

The robust die-cast metal housing with fully shielded F-connectors ensures a stable and durable connection. Thanks to DC pass-through on all connections and a ground terminal, the distributor is also suitable for demanding installations.

✅ Main features:

• Even signal distribution: 1x input (F-connector) to 2x output (F-connector).

• Maximum compatibility: Supports DVB-S/S2, DVB-T/T2, DVB-C/C2 and special/return channels.

• Premium shielding: Shielding up to 2500 MHz – optimal protection against electromagnetic interference.

• UHD 4K ready: Best picture quality for current TV and satellite standards.

• DC pass-through: On all ports – full support for active satellite components.

• Robust housing: Die-cast metal with ground terminal for safe and long-lasting use.

📊 Technical data:

• Type: 2-way satellite distributor (splitter)

• Connections: 1x input F-connector → 2x output F-connector

• Frequency range: 5–2500 MHz

• Impedance: 75 ohms

• Shielding factor:

  • 5–470 MHz: > 75 dB

  • 470–860 MHz: > 65 dB

  • 950–2500 MHz: > 65 dB

• Distribution attenuation: 950–2050 MHz approx. 10.8 dB

• Return loss: 1750 MHz > 12 dB

• Special features: DC continuity on all connections, ground terminal

• Housing: Fully shielded metal housing

📦 Scope of delivery:

• 1x RedStar24 2-way satellite splitter (F-connector, fully shielded, 120 dB)

Conclusion:
The RedStar24 2-way satellite splitter is the perfect choice for anyone who wants to reliably distribute their satellite or cable signal to two devices – robust, interference-free, and UHD 4K compatible.
